Lantech packaging machines ideal for use in e-commerce and logistics environments

End-of-line packaging machine manufacturer Lantech offers a range of innovative packaging systems to provide the logistics and e-commerce sector with fast, flexible packaging machines that set new standards in warehouse logistics and optimize the shipment of goods. See it live at Logistica Next, stand 07.B006, Jaarbeurs Utrecht, Netherlands.

Multi Format case erector

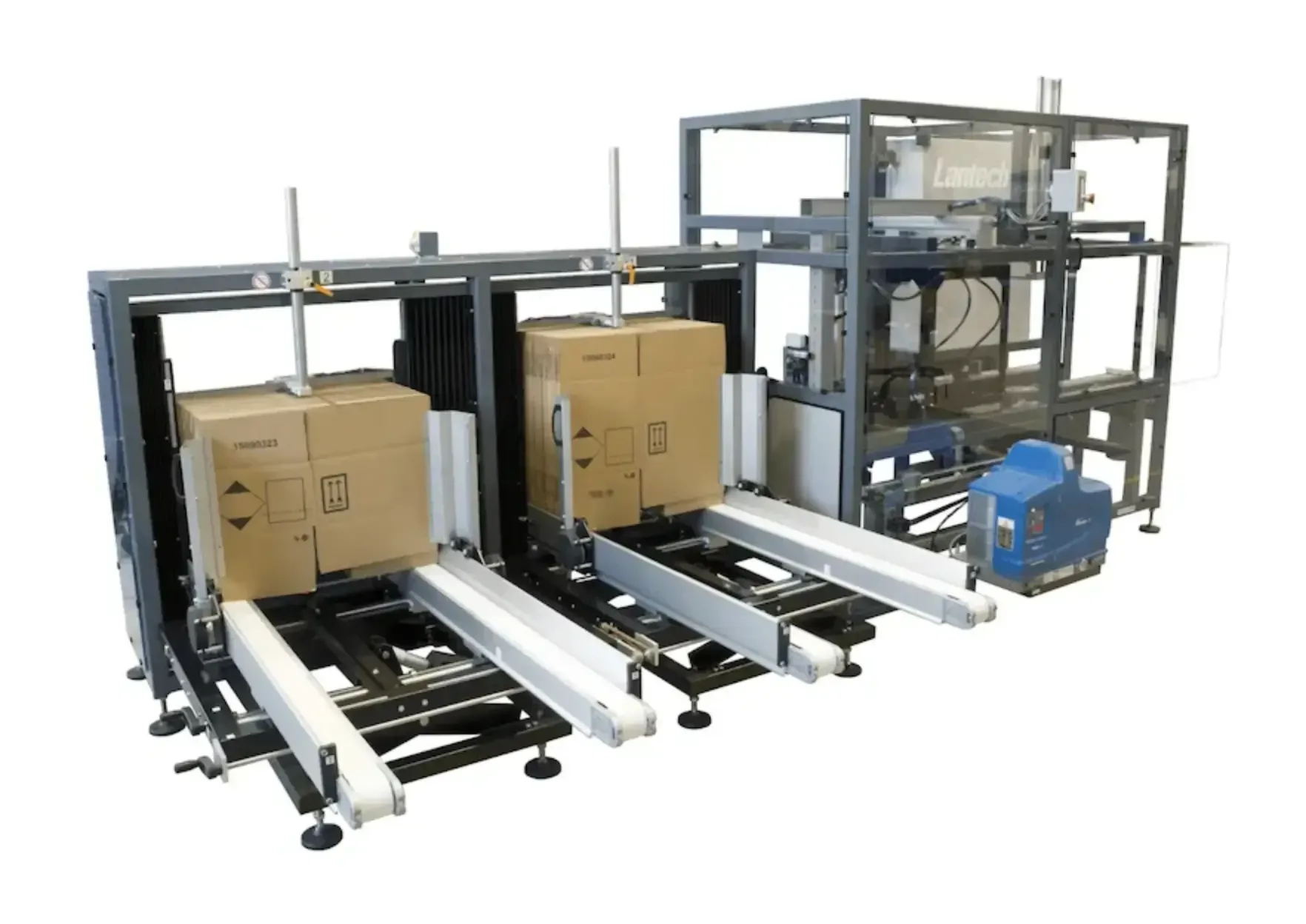

Lantech's MFC Multi Format Case erector increases the flexibility of the packaging process by allowing cases of different sizes to be erected with just one machine. This compact solution has up to four magazines that can be configured separately and filled during operation. This allows different case sizes to be produced on a single machine without the need for changeovers or production interruptions.

Save valuable production space

Compared to using multiple conventional case erectors with a single magazine, the MFC requires significantly less floor space, making it a very space-saving solution. Even more space is saved by the central output point for the cases, as there is no need to combine different conveyors into a single output system.

Choice of many cases sizes

The Multi Format case erector can be easily integrated into existing packaging lines. The MFC can handle cases with dimensions from a minimum of 200 x 150 x 150 mm to a maximum of 620 x 450 x 650 mm. The maximum throughput speed is 1080 cases per hour. The MFC is also equipped with Lantech's Total Control System. This ensures accurate control during the erection process, so that the cases are perfectly square. These uniformly square cases prevent jamming and are easier to load, stack and palletize.

Parcel Pack system

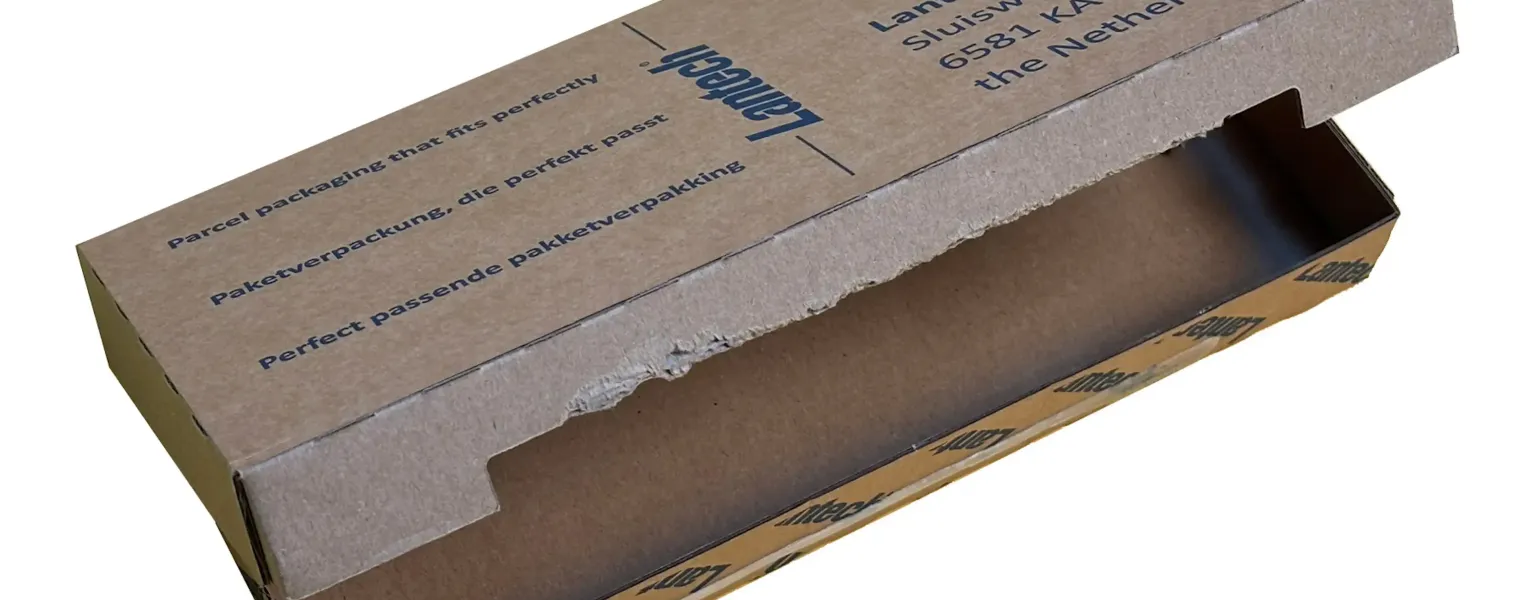

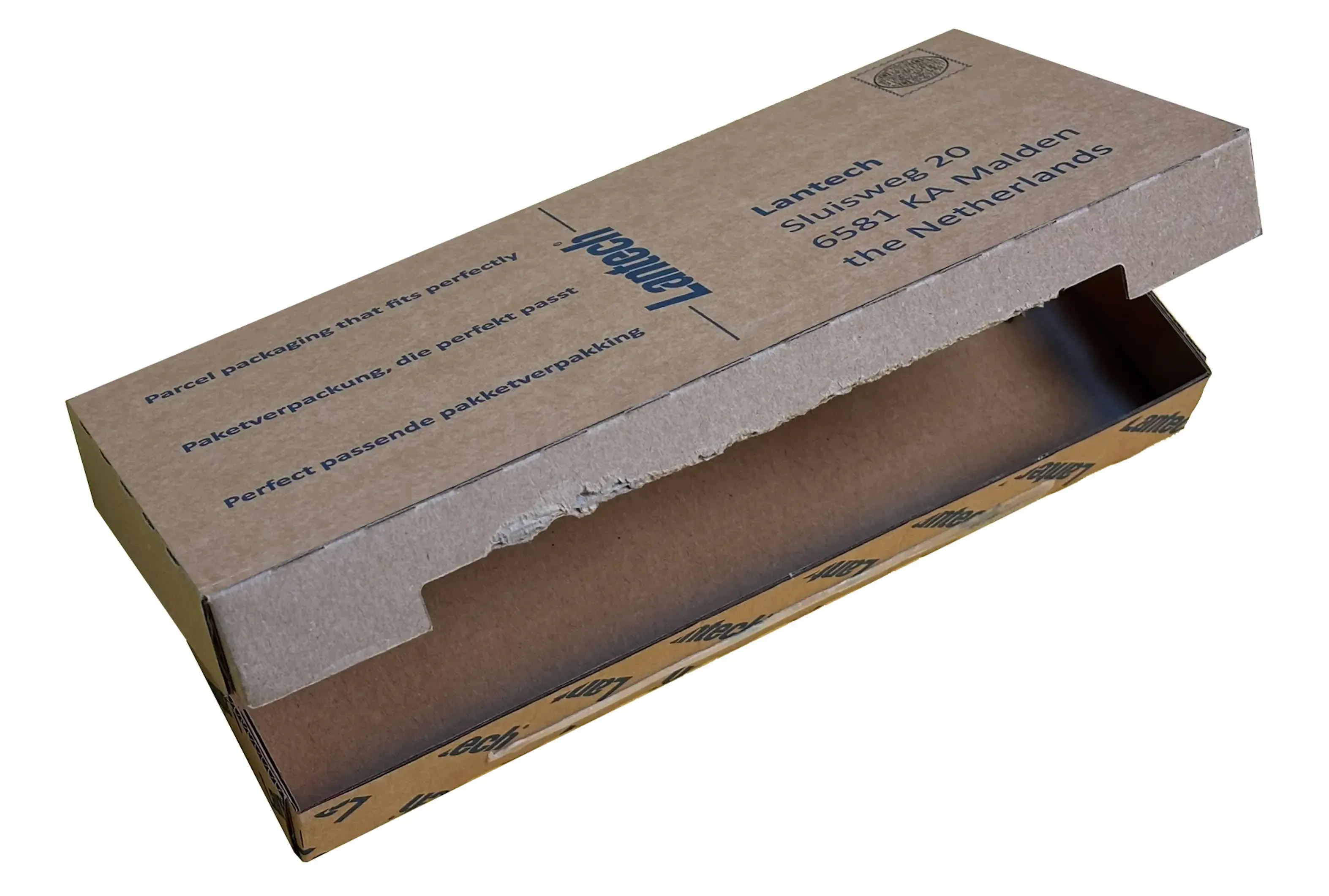

The Parcel Pack e-commerce packaging solution produces letterbox-sized trays. The TE Parcel Tray erector and LA Parcel lid machine produce up to 1,000 perfectly square cardboard letterbox parcels per hour. The compact systems can be easily integrated into the dispatch departments of e-commerce or fulfilment services.

Return shipment option

The LA Parcel lid machine has a new option whereby the lid is glued in a different way and remains attached on one side. Any return shipment can then be sent in the same packaging.

Time-saving stretch film solutions

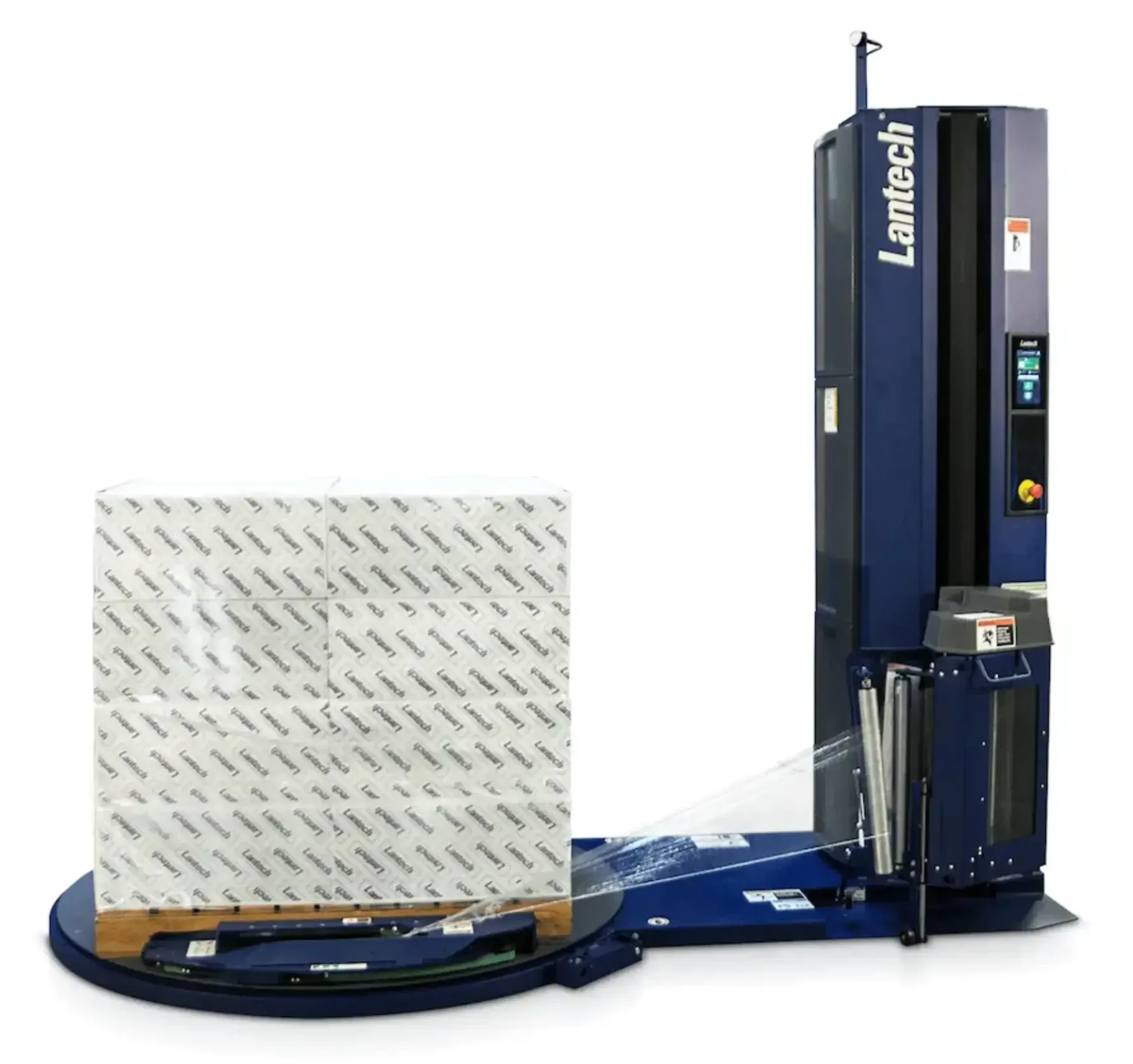

For professional securing of loads on pallets, Lantech offers an efficient packaging solution with the QL400XT semi-automatic pallet wrapper. This machine reduces each wrapping process by two minutes per cycle by automatically attaching the film to the pallet and cutting it after wrapping. This is made possible by the patented ‘XT Cut and Clamp’ function, which is purely mechanical and requires no compressed air or electricity.

Another advantage is the intelligent ‘Load Guardian’ control system. The system creates special profiles with the correct tension for common loads. This saves time and prevents operating errors. The QL-400XT stretch wrapper can process up to 35 pallet loads per hour, with a maximum diagonal of 1830 mm and a maximum height of 2030 mm. The processed film can be pre-stretched up to 300 per cent.

Visit Lantech at Logistica Next Hall 7 B006 from 4 to 6 November at the Jaarbeurs Utrecht and discover how our automation solutions can optimize your packaging processes.
