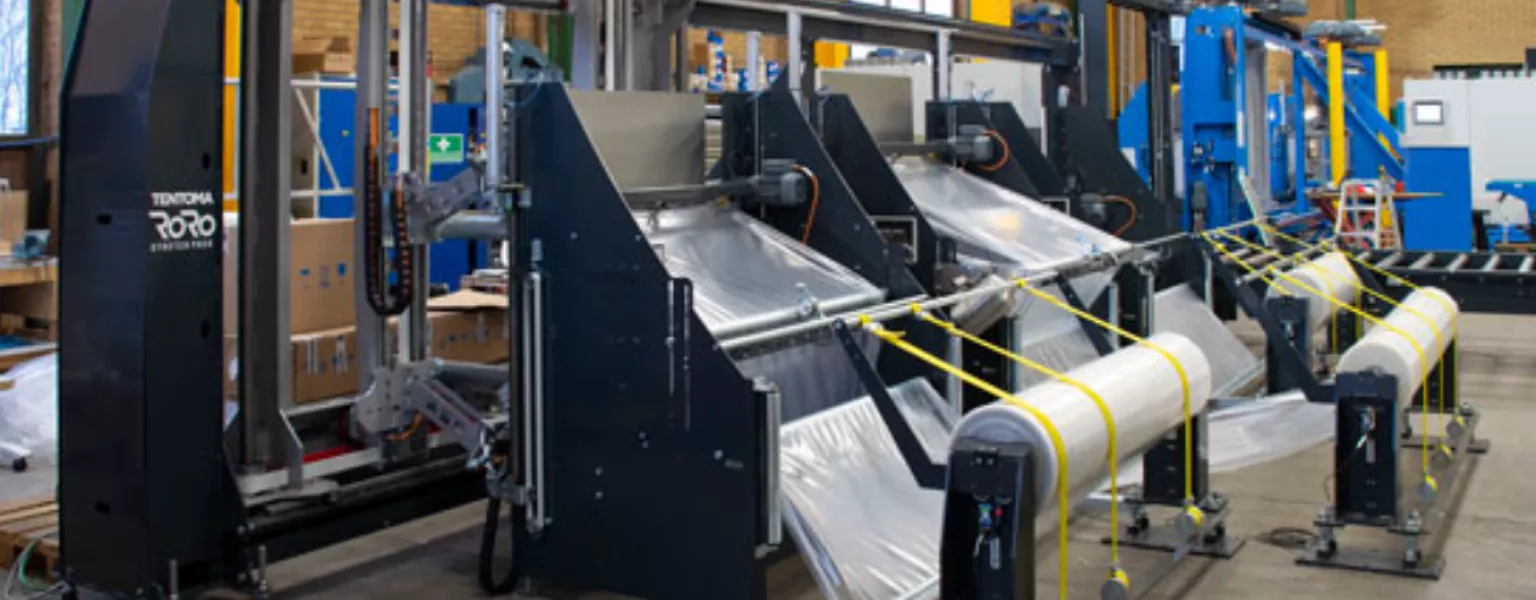

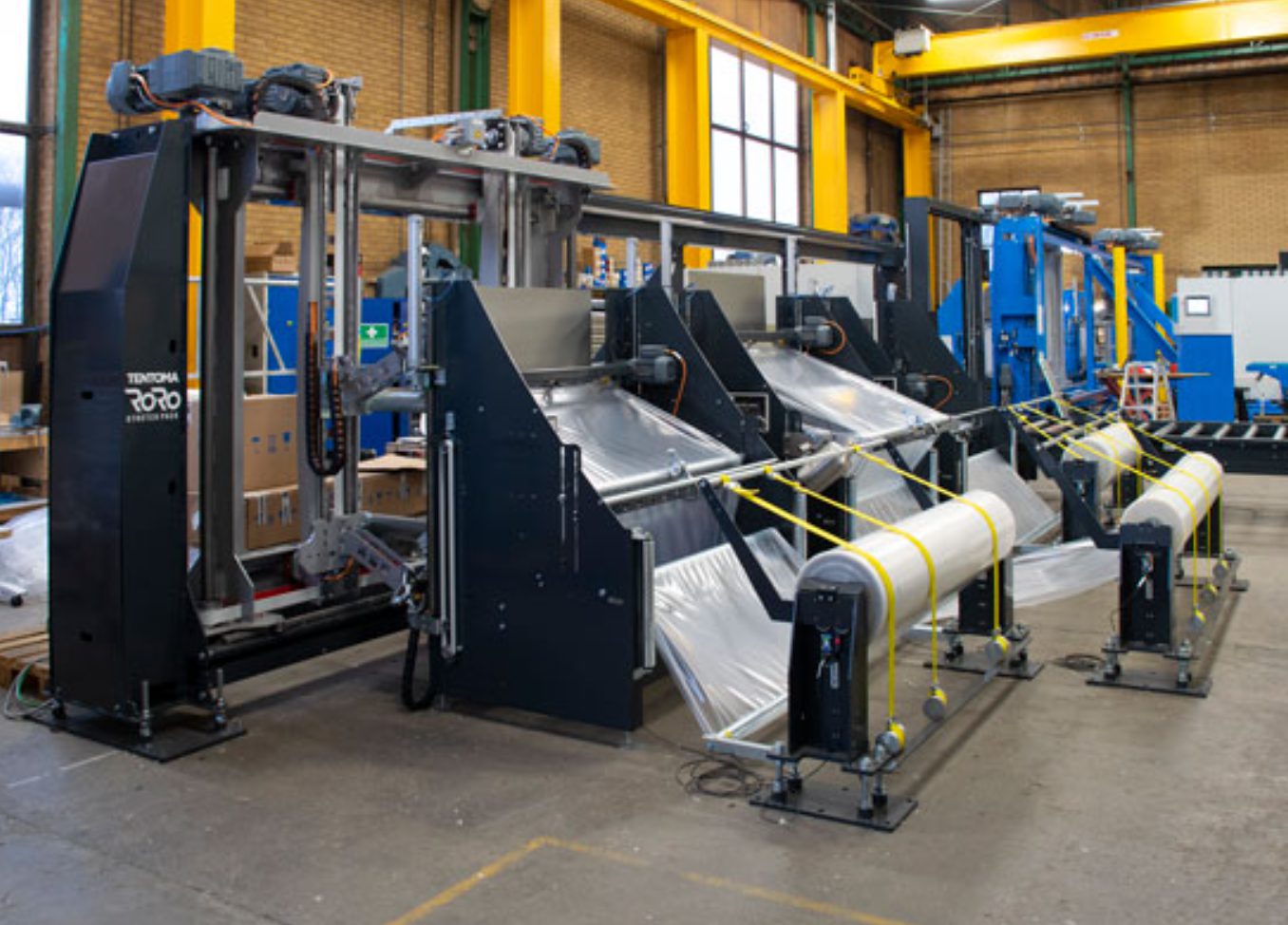

Tentoma introduces new XL Power packaging machine

The new XL Power packaging machine enables 6-sided sealed packaging of up to 19-meter-long products.

For packaging of shorter products, XL Power can stretch film for even more products per packaging cycle, which increases the packaging speed. The first XL Power is already built and sold to replace an orbital wrapper. It is for a packaging line at a production site, where it will pack panels in varied sizes, all the way up to 13.5 m in length.

Designed for stretching even more film

XL Power have more forces for stretching film. It means that XL Power can load and stretch even more film on the gripper arms during the packaging process. It opens opportunities for more packaging improvements. Most obvious is the increased maximum length of the products, which now can be packed and protected by 6-sided waterproof packaging. Depending on product shape and film thickness, it is now possible to pack and seal products up to 19 meters long. It is an increase in product length of 50%(1), compared to the standard RoRo StretchPack® XL machine.

XL Power increases packaging speed by up to 25%

Another benefit from XL Power is increased packaging speed. The ability to load and stretch even more film on the gripper arms increases the packaging speed when using the "Semiflow packaging" principle. "Semiflow packaging" enables the packaging of multiple products in a row before the machine needs to load more film on the gripper arms. XL Power can load and stretch even more film on the gripper arms, so it is possible to pack even more products in a row compared to the XL machine. A comparison between XL and XL Power shows that when the XL machine packs 210 products per hour, the new XL Power machine packs 260 products. It means an increase in the packaging speed of est. 25%(2) when using XL Power.

Technical speaking, the new XL Power is a reinforced version of the proven RoRo StretchPack® XL packaging machine. The main improvements on the XL Power machine are:

• It is equipped with stronger and longer gripper arms to load more film.
• The motors have become more powerful to stretch even more film.
• The steel construction has become stronger to withstand the increased tensile forces. As all the RoRo StretchPack® machines, XL Power will be adapted to the production line and the specific packaging requirement.

1) ex. 60 μ film, 5% stretch => XL: 11 m > < XL Power: 17 m

2) ex. 60 μ film, 5% stretch, product length 1200 mm

This article was originally published by Tentoma.
