Zemat Technology Group

Machines for cardboard box production

Zemat Technology Group is a manufacturer of machines for the production of corrugated cardboard boxes for short and medium-runs. It is an ideal solution for companies that need reliable, modern and easy-to-use machines to save time and increase their productivity.

Machines for the production of corrugated cardboard boxes includes several different types. The most popular are boxmakers – machines intended for the production of 3-, 5- or 7-layer corrugated cardboard boxes. These machines are manufactured under the world known brand: BOXMAT BOXMAKERS. Over 200 boxmakers are already in use in dozens of countries on most of the continents.

Automatic all-in-one box making machines

Boxmat Boxmakers – automatic machines for cardboard boxes production enables to make short and medium runs of many types of flap boxes made of corrugated cardboard. Usage of boxmaking machines is not limited to one or more types of boxes. The key to the popularity of these devices is their versatility.

Slitting, slotting, cutting, trimming, creasing, scoring, die cutting, printing, gluing — in one compact machine!

Universal box making machines

BOXMAT PRO is the most advanced and universal box making machine, revolutionizing the short run and serial production process of corrugated cardboard boxes.

All settings for box production done from an intuitive touch screen panel!

All you have to do is to choose a preprogrammed box style and enter the inside box dimensions on a touch screen panel. There is no manual setup at all – all tools (scoring and cutting) are servo driven and set automatically in less than a minute. Other individual design box types are available with an intuitive step-by-step creator in Free Style.

Semi-automatic box making machines

BOXMAT XCUT is an economical and versatile machine designed for short series corrugated boxes production and having an excellent price to performance ratio.

The machines are designed for companies requiring in-house production of cardboard boxes and flexibility of a quick box size change.

The use of BOXMAT machines allows efficient manufacturing of a single box or hundreds, depending on the demand. In just several seconds, with the use of a touch screen HMI, you can set up a pre-programmed corrugated style FEFCO boxes in any size.Using free set program you can compose your own box project on HMI screen and store it in machine memory (over 1000 own projects possible to store).

Corrugated cardboard flexographic printers

The FLEXOMAT printing unit works inline with the BOXMAT series machines or it can be used as a stand alone printer.

Standard configuration has one 800 mm (31") wide print drum / cylinder which is fully programmable and automatically adjustable across the width of the machine, to print image onto different panels, utilizing the full 2400 mm (94") size. Optionally, the FLEXOMAT flexographic printer can be fitted with a second independently driven and controlled drum / cylinder to double the print area or utilize the use of a second color.

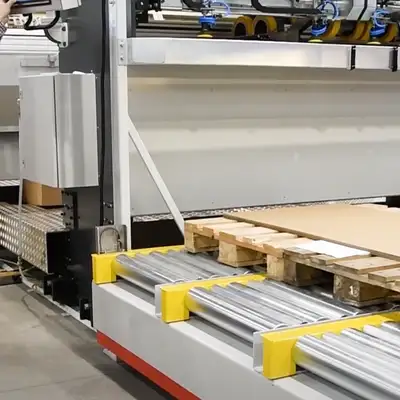

Corrugated boxes production lines

Corrugated boxes production lines with the use of BOXMAT machines were created for the most demanding customers. The main advantages of this solution are that feeding, printing, box cutting, folding and stacking od boxes are all done in one cycle od the machine.

The production lines produced by Zemat are often usef for the production of cardboard boxes from large boards. The line works automatically and with automatic feeder there is no need for operators to manually feed the boards.

Advantages of the production lines:

• Complete box production in one pass
• Time and production costs saving
• Only two operators needed to operate the whole line
• Jobs queuing capability and possible synchronization with internal production control software
